Excavator Attachments Demolition Tools Excavator Hydraulic Concrete Crusher Pulverizer

The hydraulic pulverizers as excavator attachments are composed of a caliper body, a hydraulic cylinder,
a movable cymbal and a fixed cymbal.
The external hydraulic system provides oil pressure to the hydraulic cylinder, so that the movable shovel and the fixed
squeezing force of the hydraulic smashing tongs are combined one by one to achieve the effect of smashing the object.
Hydraulic pulverizer are now widely used in the demolition industry. During the demolition process, it is installed on the
excavator, so that only the excavator operator can operate it by one person.
Availability:
  • JWYWHC08

  • YiWa

  • JWYWHC0801

Excavator Attachments Demolition Tools Excavator Hydraulic Concrete Crusher Pulverizer



The hydraulic pulverizers as excavator attachments are composed of a caliper body, a hydraulic cylinder,

a movable cymbal and a fixed cymbal.

The external hydraulic system provides oil pressure to the hydraulic cylinder, so that the movable shovel and the fixed

squeezing force of the hydraulic smashing tongs are combined one by one to achieve the effect of smashing the object.
Hydraulic pulverizer are now widely used in the demolition industry. During the demolition process, it is installed on the

excavator, so that only the excavator operator can operate it by one person.



Product parameters

Catagory
Unit
JWEEHC-06
JWEEHC-08
JWEEHC-10
Crushing force F1
ton
65
80
90
Crushing force F2
ton
100
130
150
Crushing force F3
ton
150
200
247
Oil pressure
MPa
25-30
25-30
25-30
Excavator weight
ton
12-16
18-27
28-38
Weight
kg
1300-1400
1800-2000
2000-2100

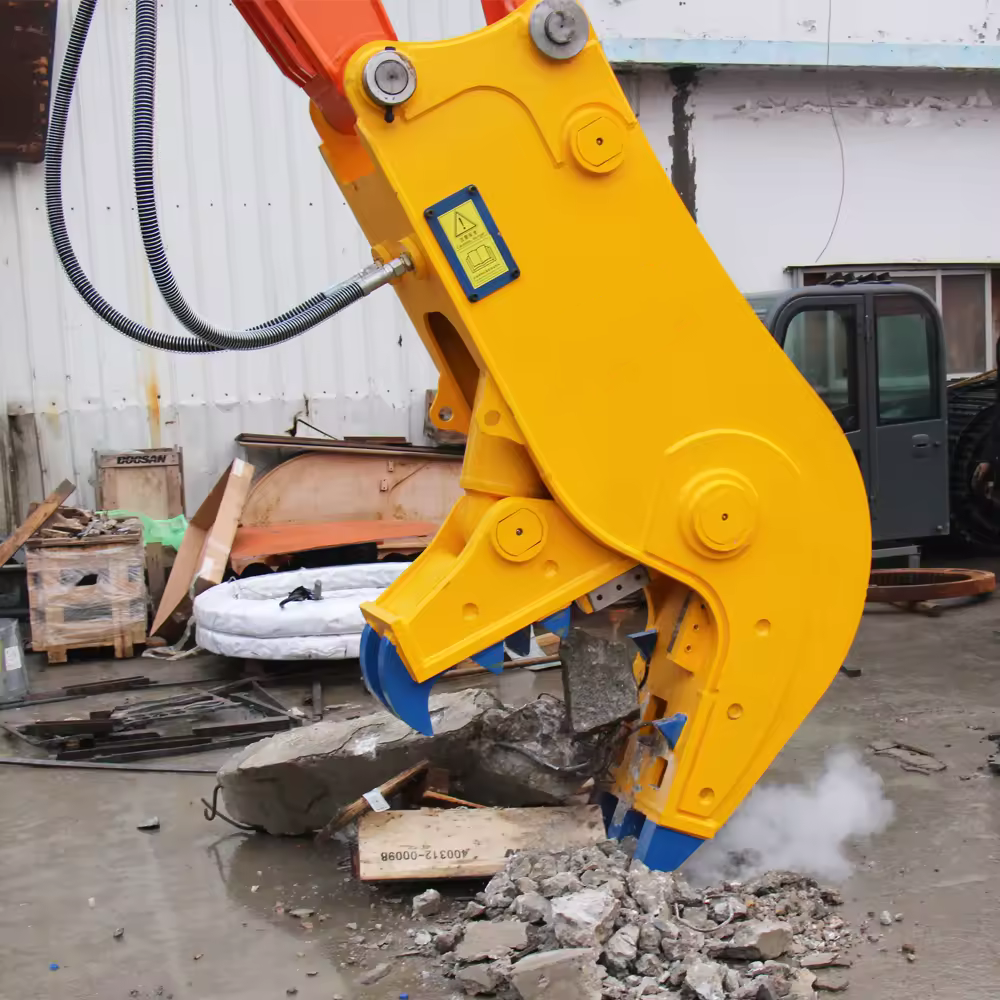

excavator crusher11

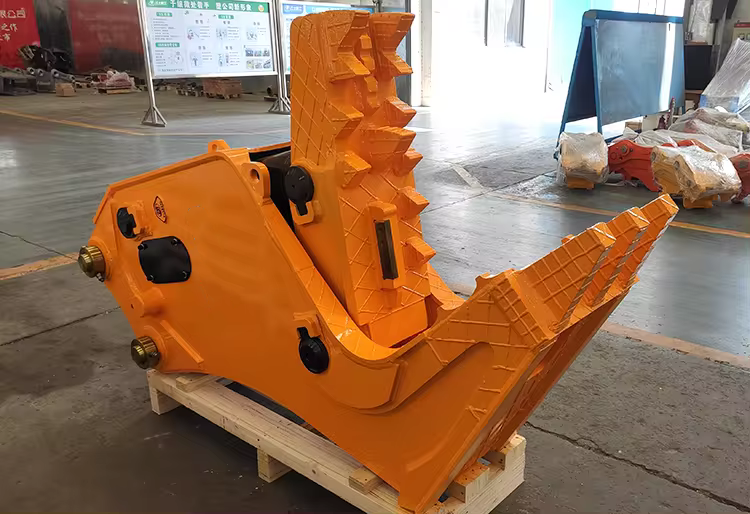

excavator crusher12

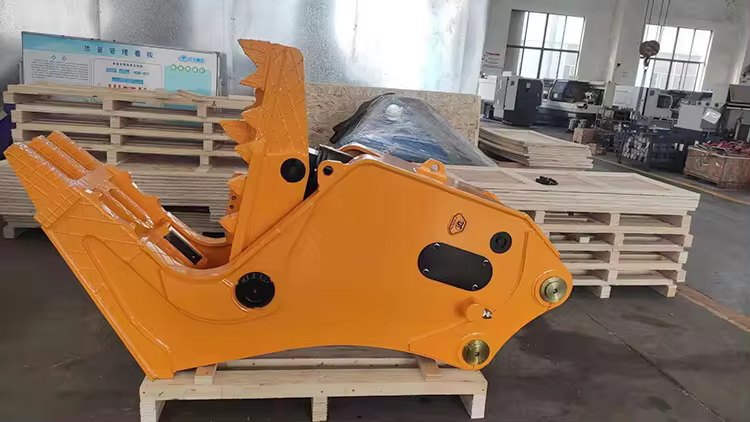

excavator crusher13

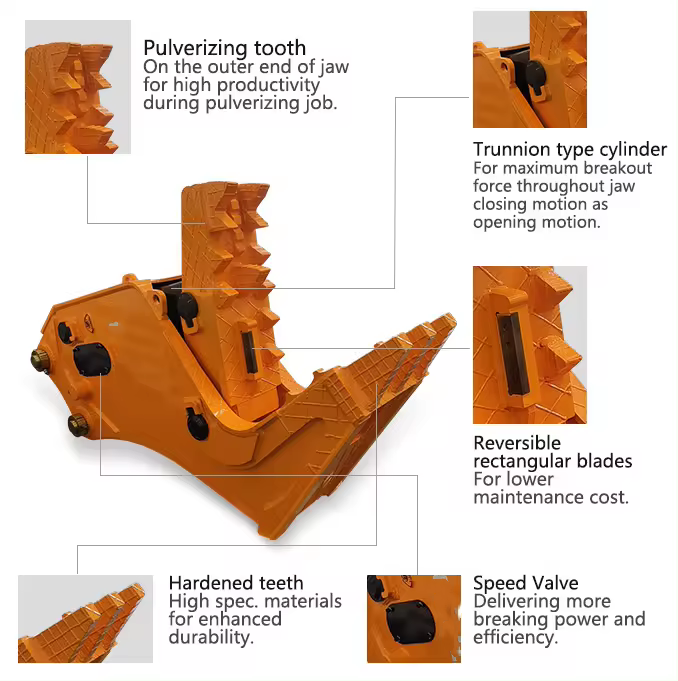

excavator crusher14

Product Features



1.Large cylinders:Strong power and excellent durability.

2.Speed up valve:Fast cycle time.

3.Lighter and stronger structure:high precision

4.360 degree hydraulic rotation optional.

5.Working efficiency is two or three times of hydraulic breaker

6.Large opening design,working easily and conveniently.

7.Equipped with steel bar cutter,fufill crushing and cutting off exposed reinforced steel at same time.

8.Low noise,can be used for city and high-tech

FAQ



Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2006. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality

attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world,

based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.


Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.

Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 2-3 days. Customized samples: About 7-10 days.
