JWYWHG08
YiWa
JWYWHG0801

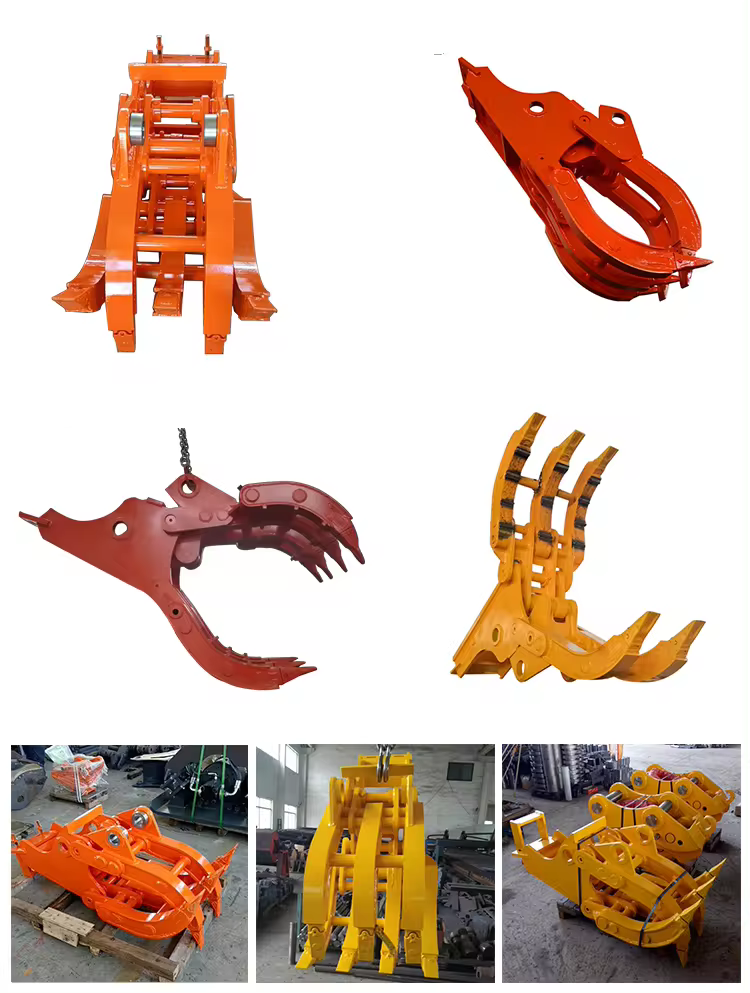

High Quality Excavator Attachments Wood Grapple For Excavator Grapple Hydraulic
Wood Grabber For Excavator

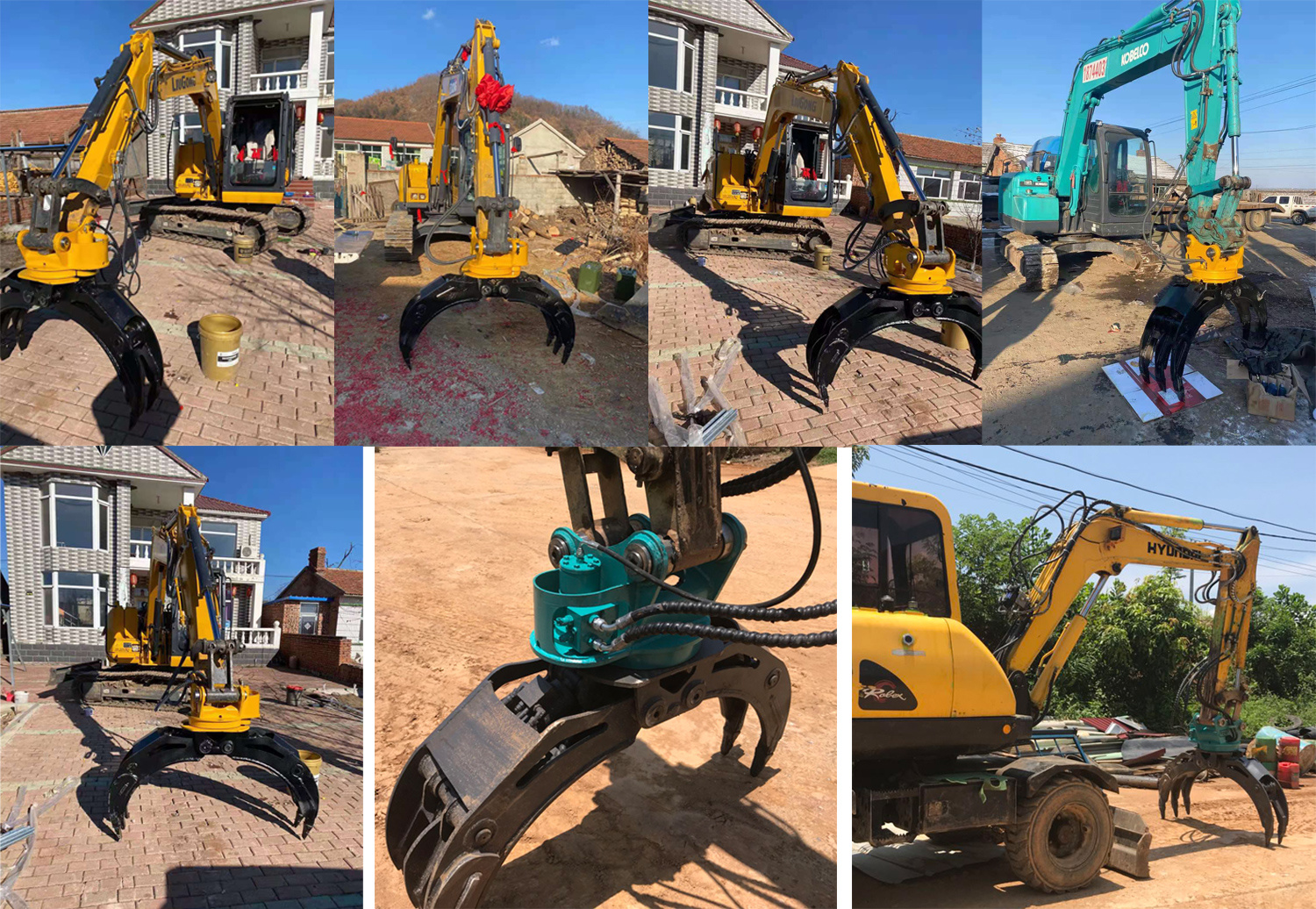

Orange peel excavator grapple can be installed on all brands of excavators to mainly grab steel scraps in high efficiency. It is widely used for sand plant, stone-crushing plant, dock, coal, renewable resources recycling, auto decomposition and waste transfer.
Excavator grapple can be made swing type without rotating or 360 degree rotating type according to customer’s request.
Product parameters
| Model | Weight | Opening Dimension | Working Pressure | Set Up Pressure | Working Flow | Cylinder Volume | Suitable Excavator |
| kg | mm | kg/cm2 | kg/cm2 | L/min | L | Ton | |
| JWC04 | 420 | 1400 | 120-160 | 180 | 50-100 | 4.5*2 | 5-9 |
| JWC04-06 | 500 | 1400 | 150-170 | 190 | 90-110 | 8.0*2 | 10-15 |
| JWC06 | 880 | 1600 | 150-170 | 190 | 90-110 | 8.0*2 | 10-15 |
| JWC08 | 1380 | 1900 | 160-180 | 200 | 100-140 | 9.7*2 | 17-26 |
| JWC10 | 1620 | 2200 | 160-180 | 210 | 130-170 | 12*2 | 26-33 |
Product Features
1,High quality material(Q355B)provide high steel toughness and good abrasive resistance
2,Imported Motor with balance valve,have buffer and brake function
3,The cylinder is equipped with non-return valve,provide good reliability and safety
4,High strength rotate support device.Operator can control the speed for 360degree clockwise
rotation or anti-clockwise rotation.
5,large open dimension,light weight with excellent performance
6,Using specially customized rotating gear to lengthen the product lifetime and reduce maintenance cost.
7,Can be fixed type(without rotating device)and we do customization
FAQ
Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2006. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality
attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world,
based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 2-3 days. Customized samples: About 7-10 days.
High Quality Excavator Attachments Wood Grapple For Excavator Grapple Hydraulic
Wood Grabber For Excavator
Orange peel excavator grapple can be installed on all brands of excavators to mainly grab steel scraps in high efficiency. It is widely used for sand plant, stone-crushing plant, dock, coal, renewable resources recycling, auto decomposition and waste transfer.
Excavator grapple can be made swing type without rotating or 360 degree rotating type according to customer’s request.
Product parameters
| Model | Weight | Opening Dimension | Working Pressure | Set Up Pressure | Working Flow | Cylinder Volume | Suitable Excavator |
| kg | mm | kg/cm2 | kg/cm2 | L/min | L | Ton | |
| JWC04 | 420 | 1400 | 120-160 | 180 | 50-100 | 4.5*2 | 5-9 |
| JWC04-06 | 500 | 1400 | 150-170 | 190 | 90-110 | 8.0*2 | 10-15 |
| JWC06 | 880 | 1600 | 150-170 | 190 | 90-110 | 8.0*2 | 10-15 |
| JWC08 | 1380 | 1900 | 160-180 | 200 | 100-140 | 9.7*2 | 17-26 |
| JWC10 | 1620 | 2200 | 160-180 | 210 | 130-170 | 12*2 | 26-33 |
Product Features
1,High quality material(Q355B)provide high steel toughness and good abrasive resistance
2,Imported Motor with balance valve,have buffer and brake function
3,The cylinder is equipped with non-return valve,provide good reliability and safety
4,High strength rotate support device.Operator can control the speed for 360degree clockwise
rotation or anti-clockwise rotation.
5,large open dimension,light weight with excellent performance
6,Using specially customized rotating gear to lengthen the product lifetime and reduce maintenance cost.
7,Can be fixed type(without rotating device)and we do customization
FAQ
Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2006. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality
attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world,
based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 2-3 days. Customized samples: About 7-10 days.
