Excavator Attachments Excavator Auger Hydraulic Earth Drill Hydraulic Drill For 10-50 Ton Excavator Earth Augers

Our excavator auger drive can be mounted to excavator, skid steer loader, backhoe loader, crane, telescopic handler, wheel loader and so on.Fast quick attach from your bucket or breaker to a drilling machine. Drill large diameter holes in most ground conditions including frozen ground and rock. Maximum performance with minimal wear and tear. It’s a high-performance attachment with a great return on investment.
Availability:
  • JWYWEA08

  • YiWa

  • JWYWEA0801

Excavator Attachments Excavator Auger Hydraulic Earth Drill For 10-15 Ton Excavator Earth Augers



Our excavator auger drive can be mounted to excavator, skid steer loader, backhoe loader, crane, telescopic handler, wheel loader and so on.Fast quick attach from your bucket or breaker to a drilling machine. Drill large diameter holes in most ground conditions including frozen ground and rock. Maximum performance with minimal wear and tear. It’s a high-performance attachment with a great return on investment.


Product parameters



Model
JWHT80
JWHT150
JWHT200
JWHT300
Applicable Machine (T)
6-8
10-15
15-22
25-35
Drilling Diameter Range (mm)
150-1200
150-1200
150-1500
300-1500
Torque Range (N/m)
2000-8000
5000-15000
16000-24000
10000-30000
Oil Pressure Range (Bar)
80-240
80-240
160-240
160-240
Working oil flow (Lpm)
70-150
80-170
160-240
160-240
Speed Range (rmp)
33-70
20-43
12-26
12-26
Unit Weight (kg)
120
175
270
300
Output Shaft (Square)
75mm
75mm
75mm
75mm

Product Features

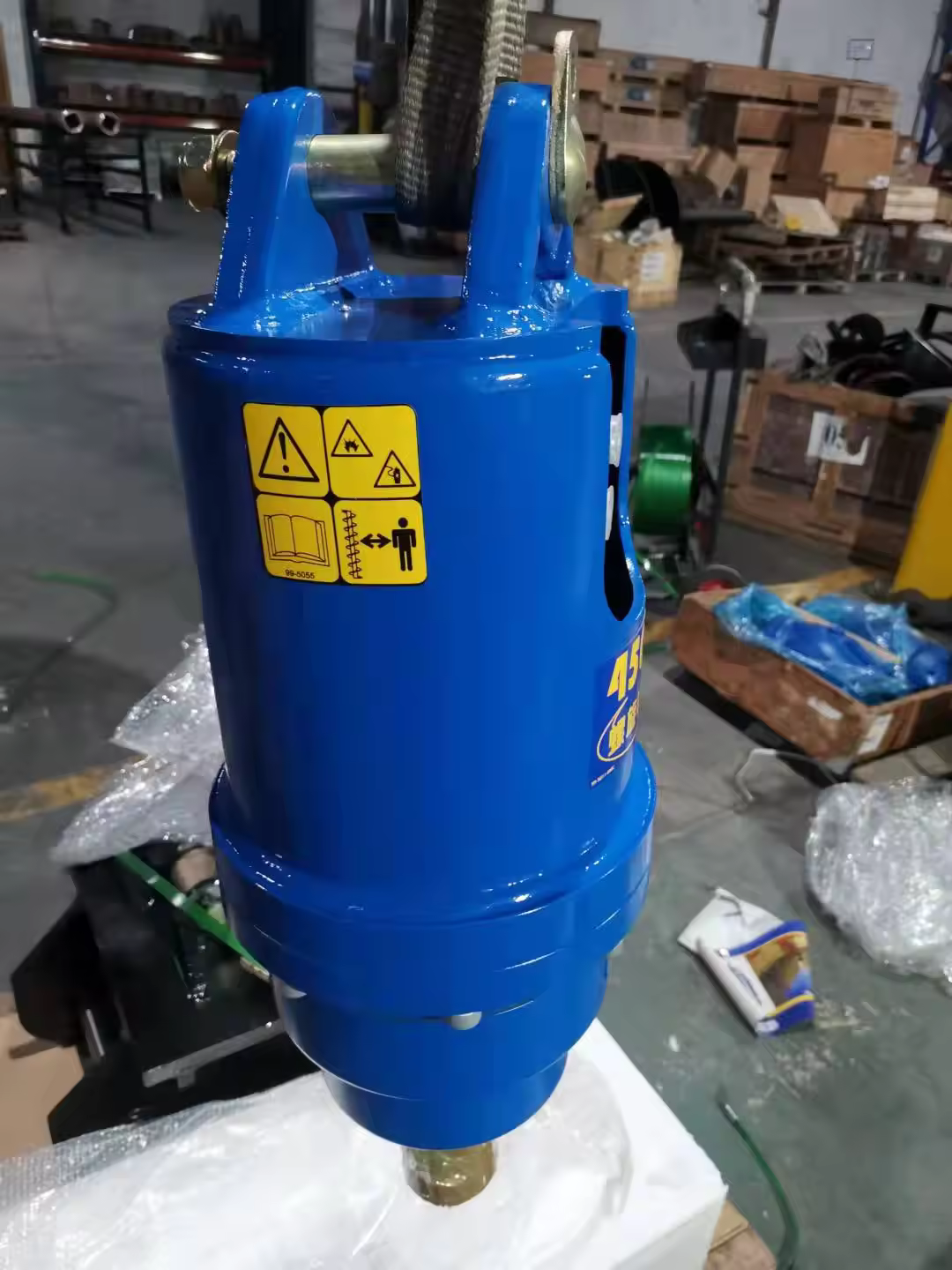

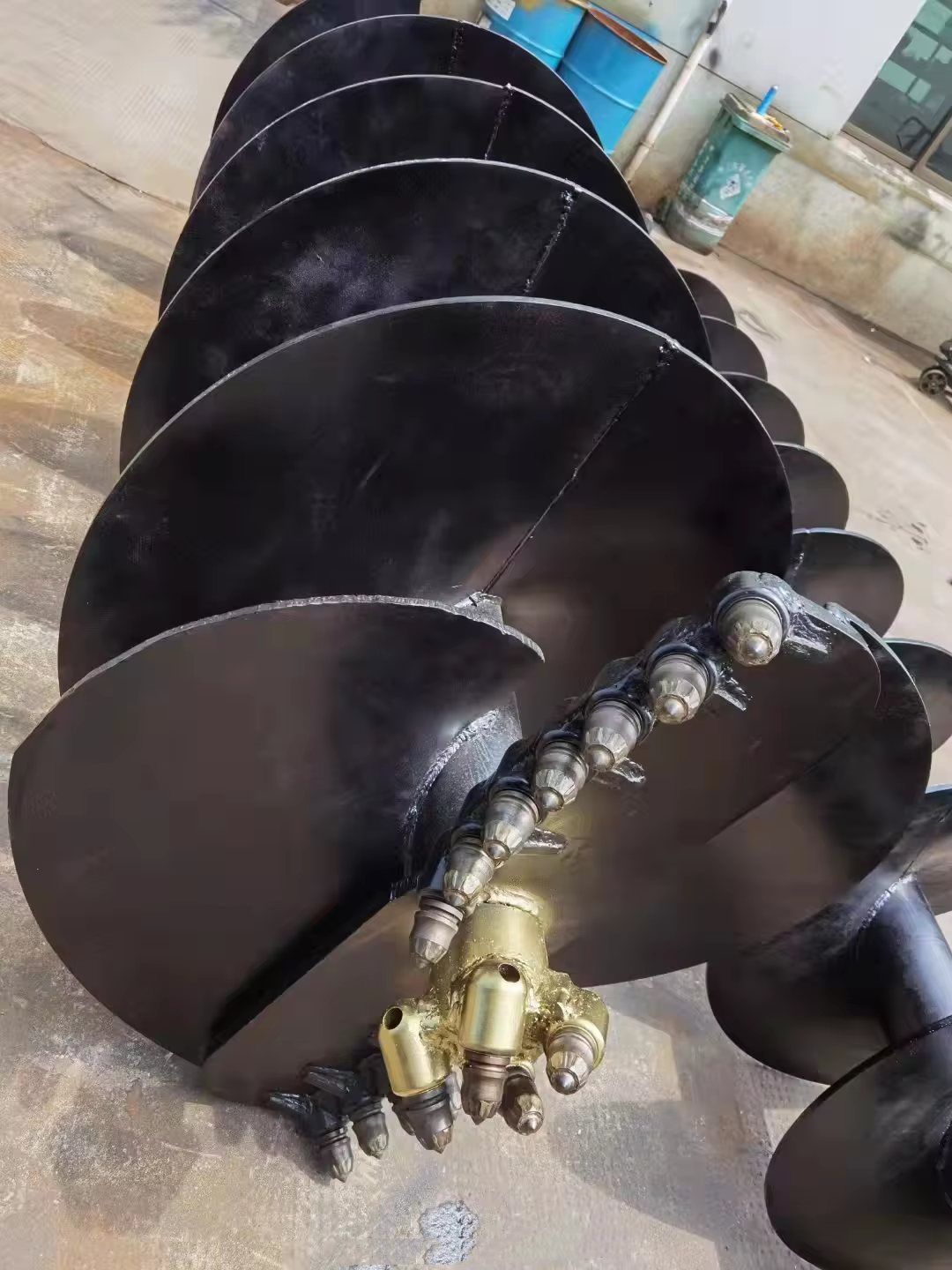

Hydraulic Auger Drives hydraulic drill
The 2-Speed High Flow auger drives are built for variable conditions that require a balance between torque and speed to be maximized throughout the project. The auger drive shifts-on-demand when high torque/low rpm conditions exist and returns to low torque/high rpm when digging eases up.

Excavator auger 7

Excavator auger 8

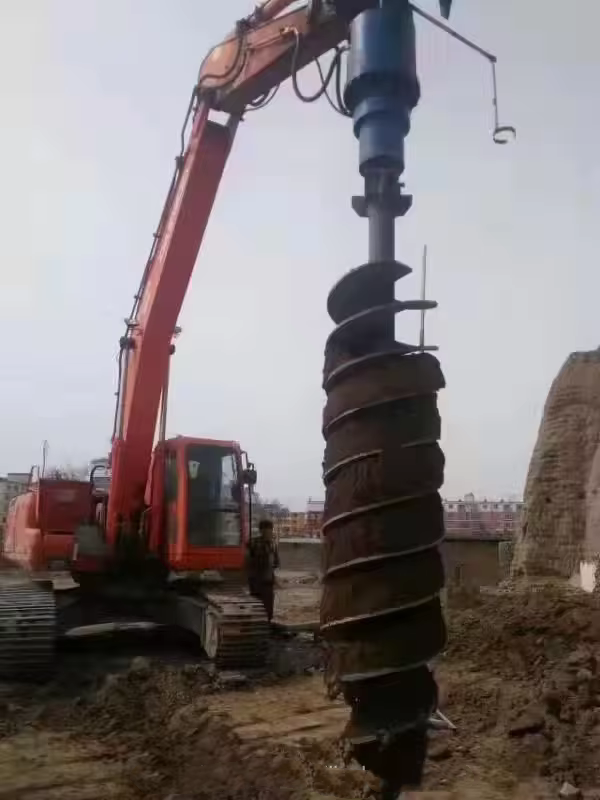

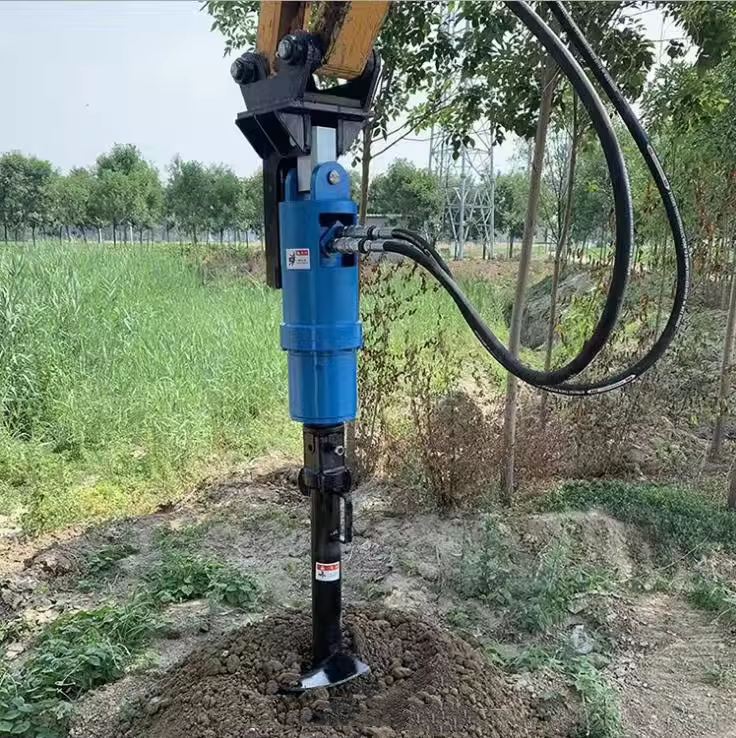

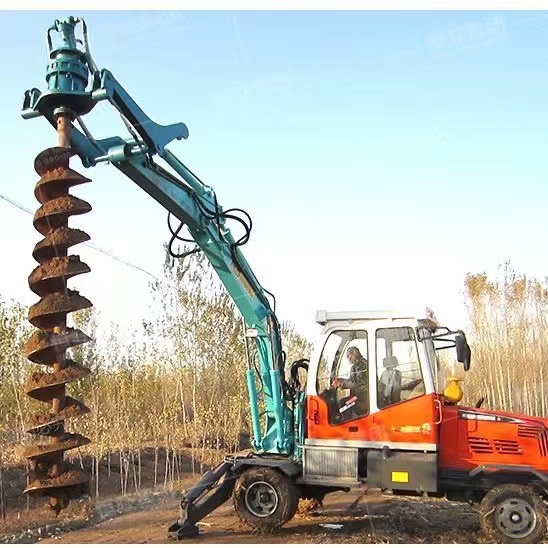

Hydraulic Drill Application

Excavator auger 6

Excavator auger 5

excavator auger 11

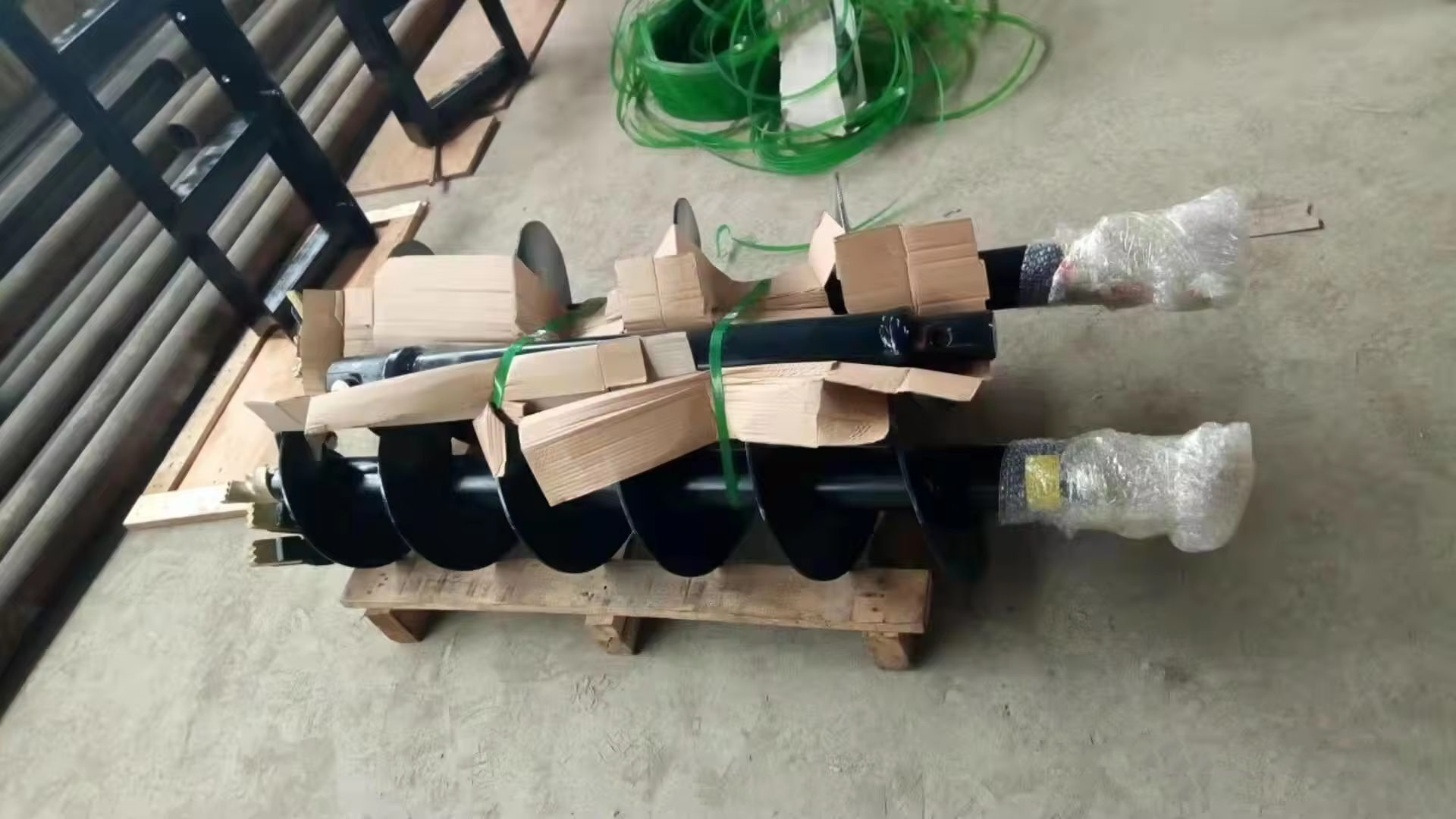

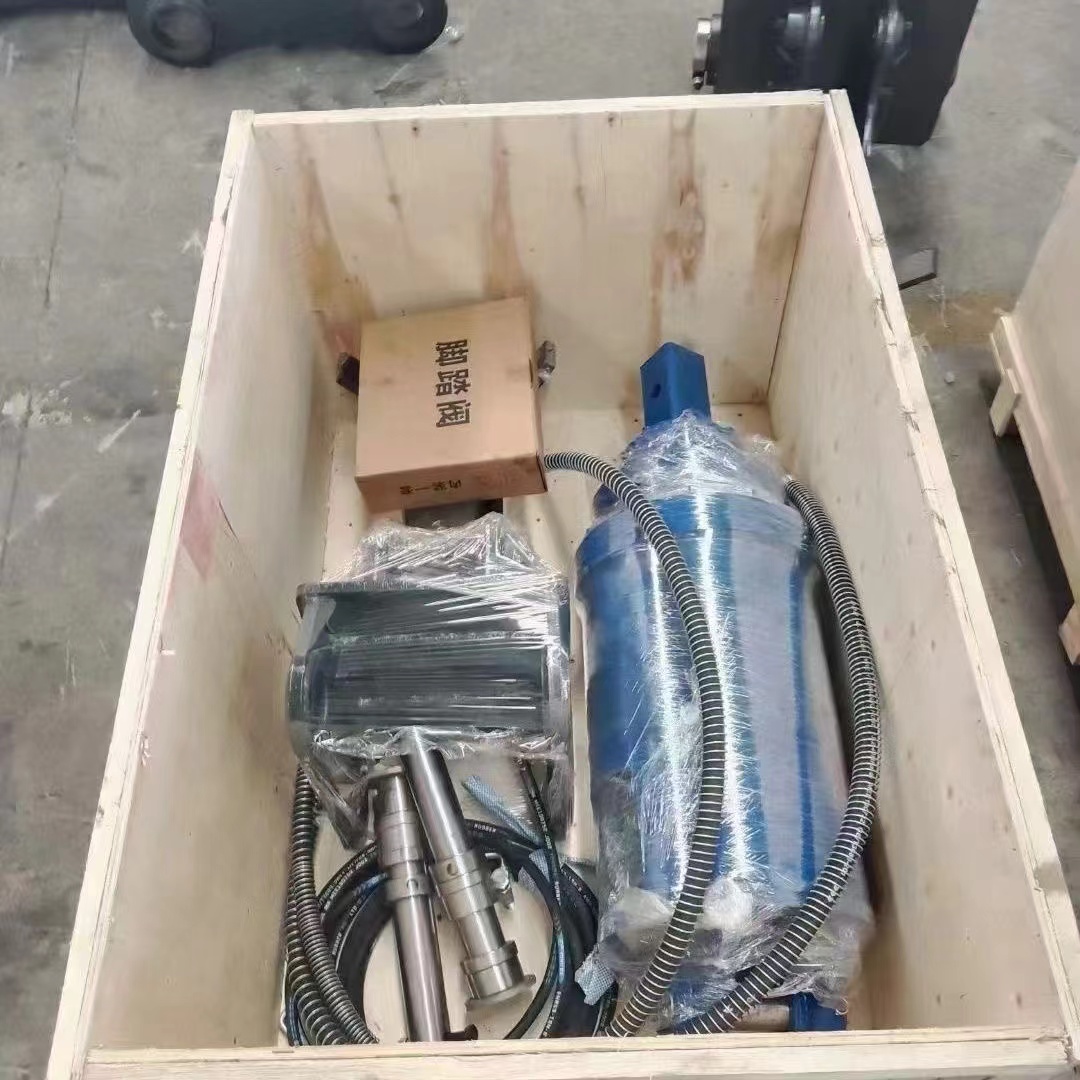

Hydraulic Drill Packing

excavator auger 13

Excavator auger 9

FAQ



Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2006. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality

attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world,

based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.


Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.

Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 2-3 days. Customized samples: About 7-10 days.
