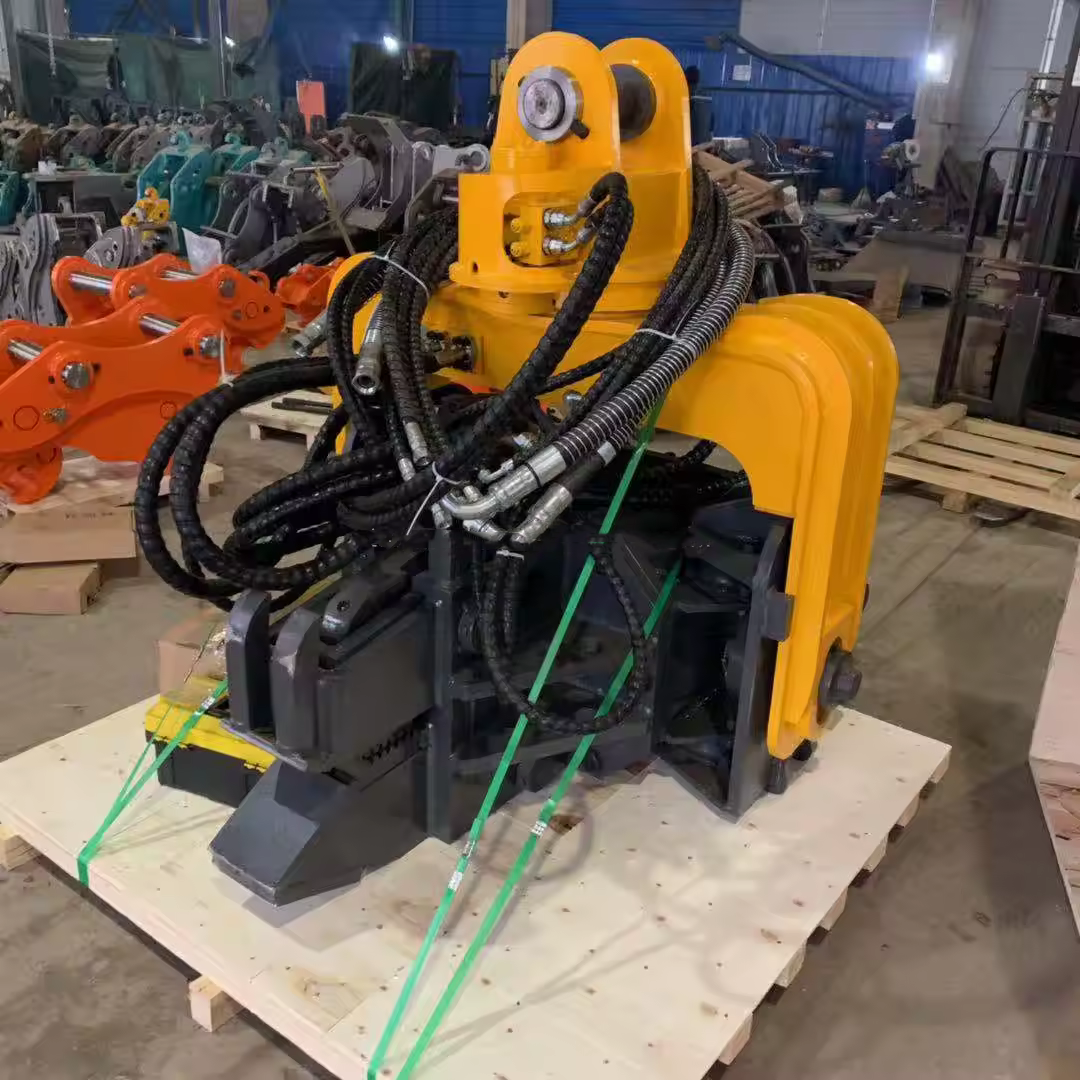

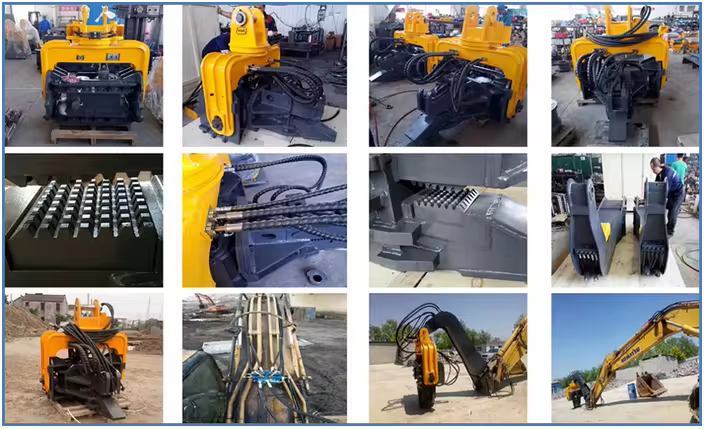

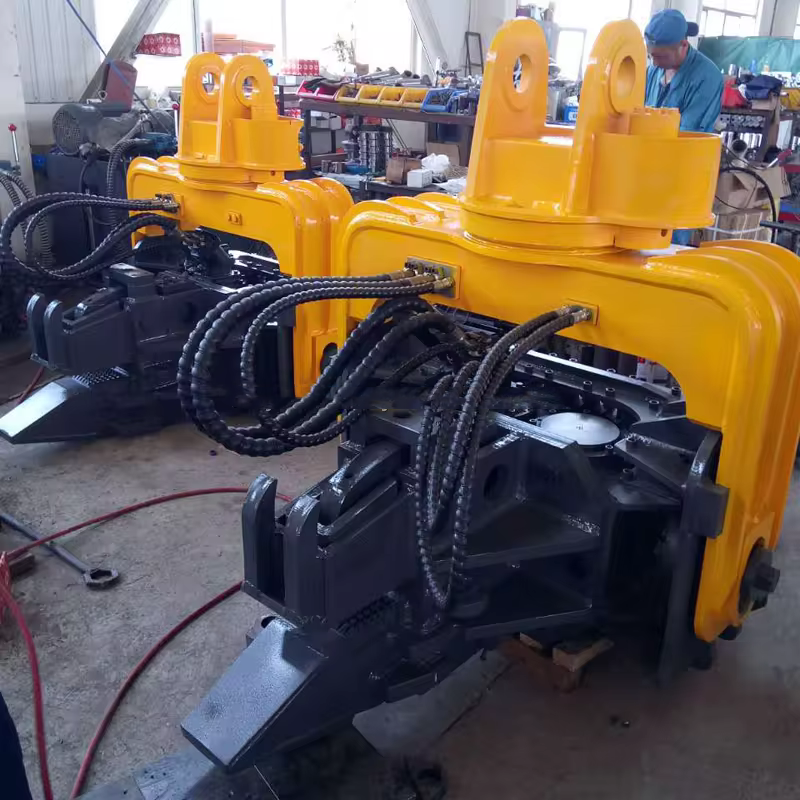

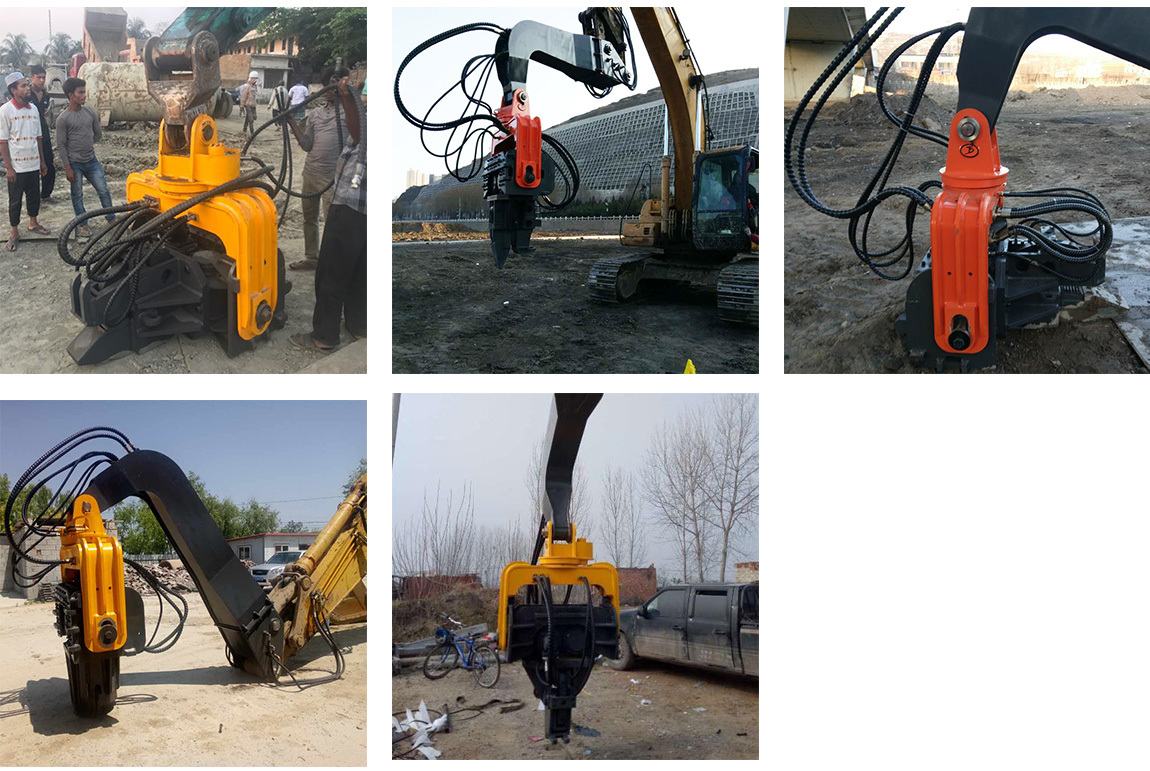

Excavator Attachments Pile Hammer Vibro Hammer Mounted Excavator For Foundation Pile
Product parameters
| Model | Unit | TDC150 | TDC200 | TDC300 | TDC400 |
| Frequency | RPM | 2600 | 2800 | 2800 | 2800 |
| Eccentric torque | NM | 28 | 40 | 50 | 70 |
| Vibration force | TON | 24 | 38 | 45 | 65 |
| Body weight | KG | 1400 | 2100 | 2400 | 2700 |
| Vice arm weight | KG | 400 | 800 | 800 | 800 |
| Pressure | BAR | 220 | 280 | 280 | 300 |
| Oil flow | LPM | 150 | 160 | 180 | 210 |
| Max pile length | M | 6 | 9 | 13 | 16 |
| Excavator | TON | 12-18 | 18-25 | 26-35 | 36-45 |
Product Features
◆ Adopt Q355 manganese plate steel, high strength and corrosion resistance;
◆ The pin shaft is made of No.45 heat-treated steel, with built-in oil passage, high strength and good
toughness;
◆ The vibration motor adopts the American "PARKER" hydraulic motor, which is durable;
◆ The rubber damper adopts Taiwan "EVERPADS", which has good toughness and high wear-resistance;
◆ Integrated design, safe and stable, low failure rate.
◆ Long-standing brand, mature technology and stable quality.
◆ The product has cooperated with foreign technology and has many years of rich experience. It is supplied
with many major domestic excavator factories and is widely used in the construction of railways, highways,
water conservancy, ports, photovoltaics, urban construction and other engineering projects.
◆ Products are sold all over the world, and the markets in Southeast Asia and the Middle East.Sales volume
is growing rapidly.
FAQ
Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2006. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality
attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world,
based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 2-3 days. Customized samples: About 7-10 days.
